To improve the lean management system of power grid equipment and power line inspection technology, JOUAV joined hands with power grid companies around China to carry out application experiments for new LIDAR-equipped hybrid VTOL UAVs.

The experiments used the CW-15 vertical take-off and landing fixed-wing UAV with LIDAR to inspect the transmission lines of different environments, terrains, and scenes, resulting in digital grid transformation and increasingly UAV intelligent inspection application scenarios.

Guangxi Power Grid simplifies powerline vegetation management

JOUAV collaborated with Guangxi Power Grid Company and conducted application experiments in Baise City, Guangxi province (located in southwestern China). JOUAV CW-15 VTOL drone equipped with a LiDAR system inspected the 110kV Tian Ma line and 220kV Liang Hu lines.

Power line inspection in Guangxi

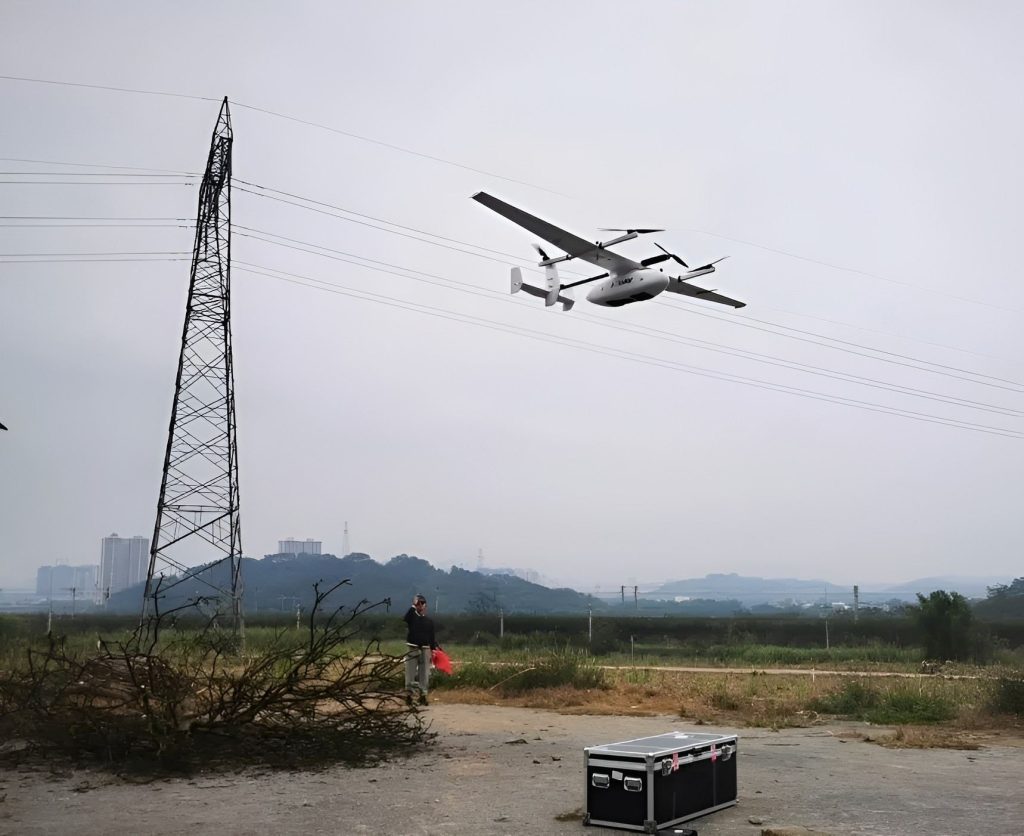

CW-15 took off from Baise, Guangxi.

The total length of the power lines inspected this time was 20km, mainly in mountainous and hilly areas. CW-15 flew at ground altitude based on a high-precision digital 3D map and inspected two routes at the same time. The flight weather was light rain to medium rain. In such an environment, CW-15 safely and efficiently completed this flight inspection experiment, establishing 3D modeling of transmission channels based on data collected by LiDAR, tree barrier analysis, and route planning for the power company's inspection robots.

Powerline vegetation management Guangxi

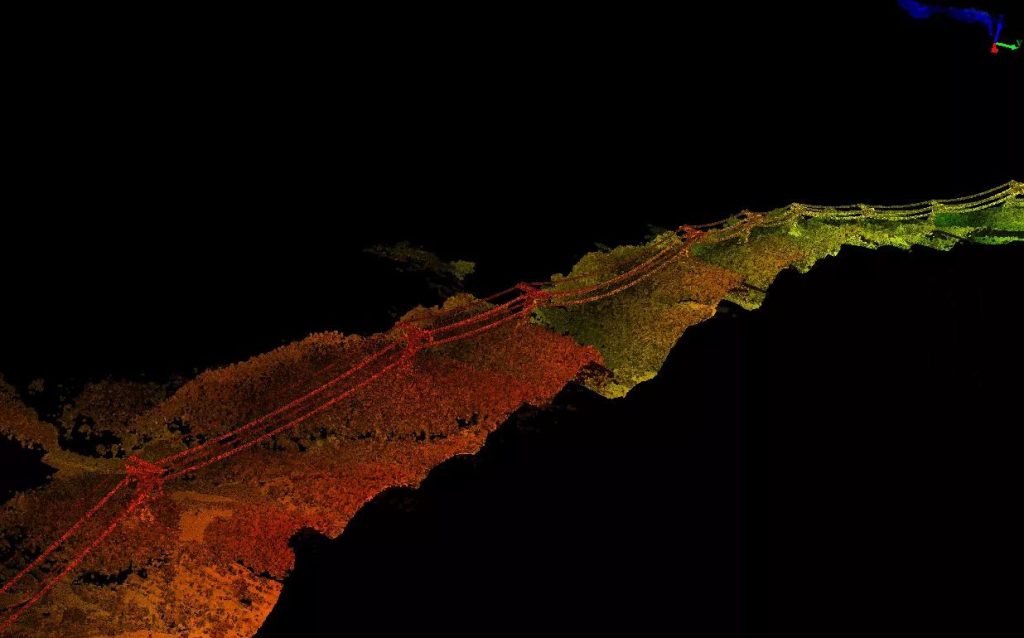

LiDAR point clouds and 3D maps allow grid operators to measure the distance between the foliage, vegetation, and power lines.

"This application experiment effectively protects the safety of the inspection staff, opens the intelligent, professional, and precise inspection", the person in charge of Guangxi power grid said, "It effectively improves the operation efficiency and data accuracy, including the real-time access to the power lines through multi-dimensional inspection".

CW-15 helps Jincheng Power Grid inspect power lines efficiently

China's State Grid Jincheng Power Supply Company (located in eastern China) experimented on hybrid LIDAR UAVs in cooperation with JOUAV. The experiment is a breakthrough innovation in the research, production, and application of UAVs application by State Grid Jincheng Power Supply Company.

Jingcheng power grid company

Members of Jingcheng Power Grid Company

During this joint experiment, CW-15 UAV, equipped with a LIDAR system, was used to carry out experimental inspection operations on the 110kV Tai Chun line. The total length of the inspection line is 19.6 km, all of which are mountainous and complex terrain.

The experiment was conducted at a low temperature of -4℃ in winter with strong wind gusts, and the simulated lines were affected by snowstorms and ice cover. The main purpose was to test the CW-15 UAV with a LIDAR system, UAV low-temperature endurance, the communication signal condition in complex terrain, and LIDAR data acquisition in single, dual, and triple route inspections separately.

JOUAV CW-15, inspecting 200 meters above the transmission channel for 60 minutes, safely and effectively completed the flight experimental inspection operations. After exporting the point cloud data, they obtained the specific situation of the power line affected by snowstorms and ice cover through internal software analysis, which played a decisive role in the analysis and further research of potential problems.

Power line inspection of Jingcheng

Utilizing the CW-15, the team can spot insulators, and concrete damage, and mark them for repair.

The staff of the transmission and operation inspection center claimed: "We will take the construction of drone lab as the driving force, improve the existing power grid inspection method as the core, give the application system of drone inspection an important place, and dare to try and foretaste, so as to promote drones to be a bigger role in the power gird inspection and maintenance.

The efficiency of CW-15 UAV inspection in a day is 6-10 times that of multi-rotor UAV. CW-15 can accurately and efficiently gain first-hand information on transmission lines and is widely used in the power grid industries to prevent hill fire, ice cover, external breakage of electrical facilities, and special fault patrol.

JOUAV is committed to accelerating the upgrading of intelligent inspection, continuously strengthening cooperation with the electric power industry, deeply researching the technical application of UAVs in power grid line patrol, and contributing to the construction of China's power grid.

Hubei Power Grid uses CW-15 to prevent power line fire

Hubei Electric Power Maintenance Company (located in the south of central China) made use of JOUAV CW-15D UAV to carry out a special inspection of ±500 kV Longzheng Line No. 865-964 pole tower line channel against mountain fire.

China's State Grid Xiaogan Power Supply Company applied JOUAV CW-15 to inspect power transmission channels, which ensured the safe operation of cross-province transmission channels, high-speed railway power supply lines, and new energy transmission channels in northern Xiaogan.

Xiaogan Power Grid Company

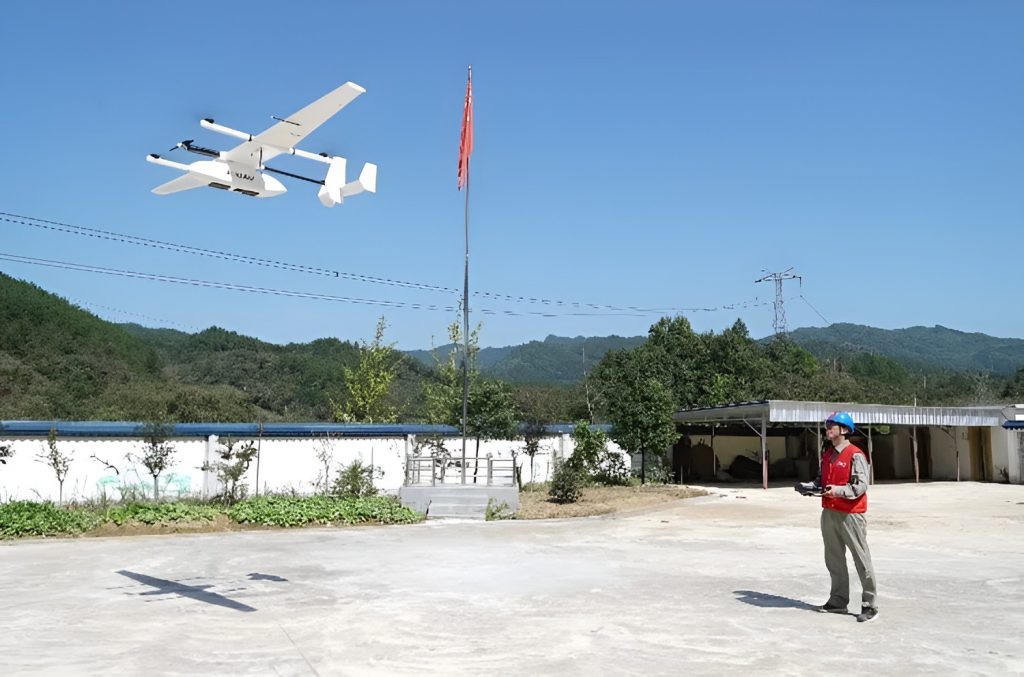

Only one pilot is needed to operate CW-15 drone for power line inspections.

China Southern Power Grid Guiyang Bureau used the JOUAV CW-30LiDAR to conduct a line inspection of the Yunnan-Guizhou interconnection channel project before it was put into operation, making sure that the Yunnan-Guizhou interconnection channel project was put into operation with zero defects.

Power line inspection for Xiaogan Power Grid Company

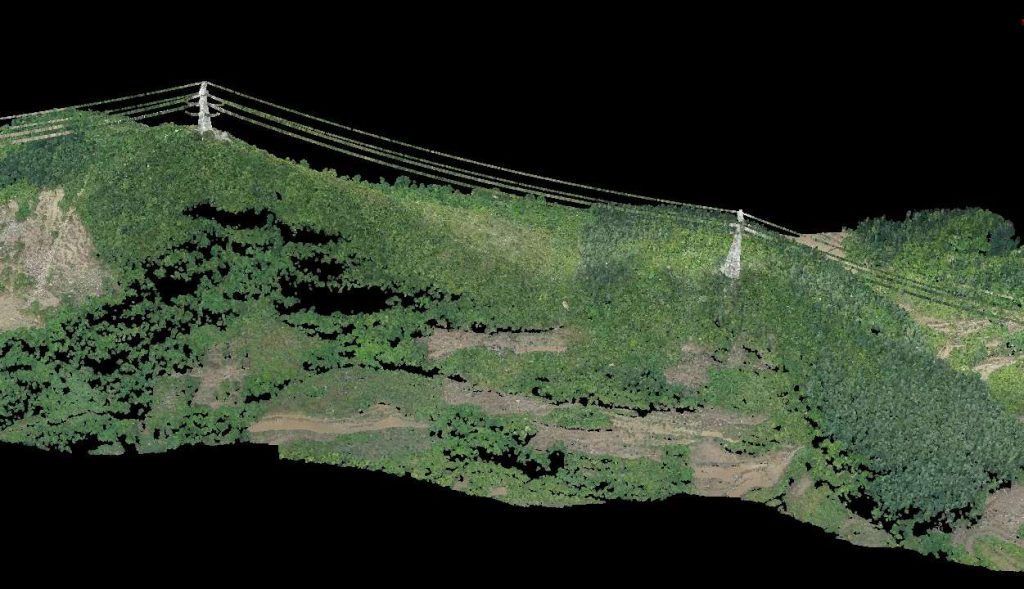

With the 3D-reconstructions of power lines from drone LiDAR point clouds, operators can quickly detect anomalies or defects, thus reducing fire hazards.
