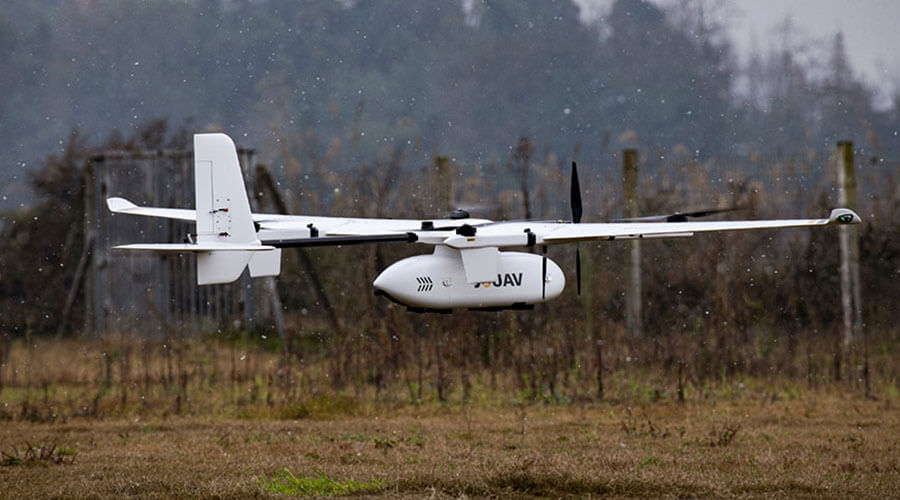

CW-15 Long Endurance Battery-operated Small UAV
180min
Max Flight Time
61km/h
Cruising speed
6500m
Max Service Ceiling
3kg
Max Payload
Benefits and Features
With the continuous technical updates , our drones bring many actual benefits to our customers, including saving time and cost, getting more comprehensive data, keeping personnel safe, etc.
product-detail
High Performance
Up to 3 hours endurance, 3kg payloads capability, 4500m take-off altitude, and 6500m practical ceiling. The cruising speed can reach 61km/h.
product-detail
Multi-purpose
The CW-15 can carry various payloads. Therefore it can be applied to wide range of tasks, including mapping, surveillance, public safety, oil and gas pipeline inspection, etc.
product-detail
Easy to Use Upgrade
CW-15 is easy to use with its vertical takeoff and landing, auto pre-flight check, magnet compass auto calibration, visualization controller and software, and wireless networking data download.
product-detail
Active Safety Technology
Automatically avoid obstacles in the flight, detect other drones equipped with ADS-B modules, adapt to more terrain and avoid dangerous landing points such as roofs and cliffs.
product-detail
Aviation Grade Reliability
Automatically recovery from the fault and balance the abnormal actuation unit. Through the all-digital bus avionics, CW-15 achieves high reliability, high compatibility and strong expandability.
product-detail
Super Environmental Adaptability
Fly in high altitude, high humidity, low temperature, and light rain condition with self-heating airspeed tube and battery. It can also easily fly in the complex electromagnetic environments.
product-detail
Open Architecture
Open system architecture and data encryption for private channels means you'll have access to a vanity of industry specific solutions at present and in the future.
product-detail
Stay updated
We will listen to the feedback from clients and keep updating our products. It keeps our technology at the forefront of industrial drones.
Optional Payloads
JOUAV UAV can carry many types of mission payloads. You can choose different cameras according to the actual mission needs, including LiDAR system, industrial aerial camera, oblique camera system, gimbal system and SAR. Simple and flexible, multi-purpose.
Phase One iXM Series Camera
High-resolution medium format cameras for mapping and surveying
CA-103 Aerial Camera
61 MP full-frame camera for land surveying, urban planning
MG-120E EO/IR Gimbal Camera
Lightweight 3-axis gimbal camera with 30X optical zoom and thermal sensors
Supporting Software
JOUAV provides one-stop UAV products, including the supporting software needed for the task. You can use these software to plan a flight path, control and manage the drone, track and identify targets, and see video and geo-data information from the drone in real time.
Eagle Map
An intuitive software solution to deploy drones' security and surveillance operations.
FlightSurv Drone Mapping software
Cloud-based drone mapping software for flight planning, data collection, processing, and analysis.
Ground Control Stations
JOUAV offers handheld, portable and modular vehicle ground control station. You can choose different control devices according to the different environment and task.
TC-200 Handheld Ground Control Station
An all-in-one handheld UAV ground control station for controlling unmanned vehicles and payloads
GCS-303 Ground Control Station
A portable dual-screen ground control station to control drone flight, recovery, and payloads.
Technical Specifications
Hardware

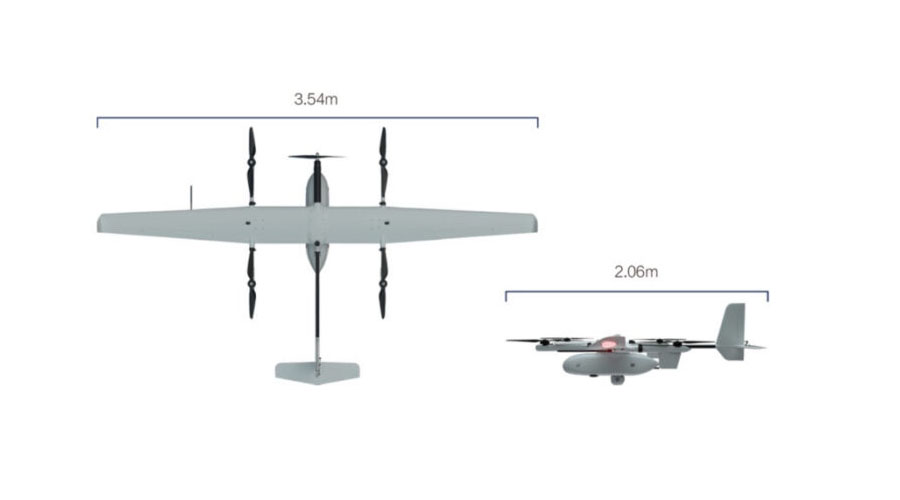

Fuselage
2.06 m
Wingspan
3.54 m
Electro Motor
Low noise, brushless
Payload
3 kg
Endurance
120-180 min
Flight Performance
Endurance
180min
Cruising Speed
61km/h
Wind Resistance
10.8-13.8m/s
Ceiling
6500m
Max Takeoff Altitude
4500m
V Positioning Accuracy
3cm
H positioning Accuracy
1cm+1ppm
Takeoff Landing
VTOL
* All performance data in the foregoing pages are theoretical values obtained by JOUAV® internal laboratories through tests carried out under particular conditions. For more information on the specific testing conditions, refer to the aforementioned product details. Actual performance may vary owing to differences in individual product configuration, software versions, application conditions, and environmental factors. All data is subject to actual usage.
Industry Applications
JOUAV drones widely used in mapping and geographic information, inspection, security monitoring, emergency and other fields of a variety of application scenarios.
Aerial Mapping & Surveying
Are you looking to add drones to your surveying services? Here is everything that you need to know about drone surveying.
Security & Surveillance
In this article, you will learn the benefits you can see with security drones, how to use drones for security surveillance, and more.
Power Line Inspection
Drones are an attractive alternative for power line inspection. but what are the benefits, outputs, and applications? Let's explore more.
Professional Technical Support
We are committed to ensuring that every customer can get timely and professional technical support. Engineers can provide customers with remote product installation guidance, software updates, and UAV flight technical support; they can also arrive at the scene to provide services.
after-sales
item-icon
Complete drones flight training
item-icon
Professional after-sales engineer team, online or on-site support
item-icon
Well documented support and videos
item-icon
Local distributor support
item-icon
Worry-free package and professional insurance
item-icon
Warranty and return to factory repair
