CW-25H Hydrogen-electric Hybrid VTOL Fixed-wing UAV
330min
Max Flight Time
80km/h
Cruising speed
6000m
Max Service Ceiling
4kg
Max Payload
Benefits and Features
With the continuous technical updates , our drones bring many actual benefits to our customers, including saving time and cost, getting more comprehensive data, keeping personnel safe.
product-detail
330mm Ultimate Long Endurance
The CW-25H can fly up to 330 minutes or 435km range. It is suitable for all long—distance inspections and large—area surveying & mapping.
product-detail
Quieter
CW-25H has low noise and no vibration during power generation. It is quieter than regular drones and suitable for maritime and border inspections.
product-detail
Easier
CW-25H also support a variety of intelligent payloads, software and remote controller, which can be very easy to achieve automatic task execution.
product-detail
Safer
It passed various rigorous tests, including 150m Drop Test, Shot Test, Fire Test, and Extreme Pressure Test. It has proven to be very safe and stable in real use.
product-detail
Certified
Based on the tests, we have gained global certifications such as TPED in Europe, DOT in USA, KC in Korea, and WorkSafe in Australia.
product-detail
High Adaptability
With its VTOL, Heated & Drained Pitot Tube and Hydrogen Fuel Cell System, the CW-25H can work in wide range conditions.
product-detail
Convenient
We provides hydrogen charging and distribution services. Customers only need to replace the hydrogen tank to continue their tasks.
product-detail
High Efficiency
There is no need for regular maintenance and replacement of parts during the use of the fuel cell, which saves more time and costs.
Optional Payloads
JOUAV UAV can carry many types of mission payloads. You can choose different cameras according to the actual mission needs, including LiDAR system, industrial aerial camera, oblique camera system, gimbal system and SAR. Simple and flexible, multi-purpose.
PhaseOne iXM Series Camera
High-resolution medium format cameras for mapping and surveying
MG-120E EO/IR Gimbal Camera
Lightweight 3-axis gimbal camera with 30X optical zoom and thermal sensors
MG-150E EO/IR/LR Gimbal Camera
30x optical zoom and thermal imaging drone gimbal camera with 4km laser rangefinder
Ground Control Stations
JOUAV offers handheld, portable and modular vehicle ground control station. You can choose different control devices according to the different environment and task.
TC-200 Handheld Ground Control Station
An all-in-one handheld UAV ground control station for controlling unmanned vehicles and payloads
GCS-303 Ground Control Station
A portable dual-screen ground control station to control drone flight, recovery, and payloads.
Supporting Software
JOUAV provides one-stop UAV products, including the supporting software needed for the task. You can use these software to plan a flight path, control and manage the drone, track and identify targets, and see video and geo-data information from the drone in real time.
Eagle Map Drone Surveillance Software
An intuitive software solution to deploy drones' security and surveillance operations.
FlightSurv Drone Mapping software
Cloud-based drone mapping software for flight planning, data collection, processing, and analysis.

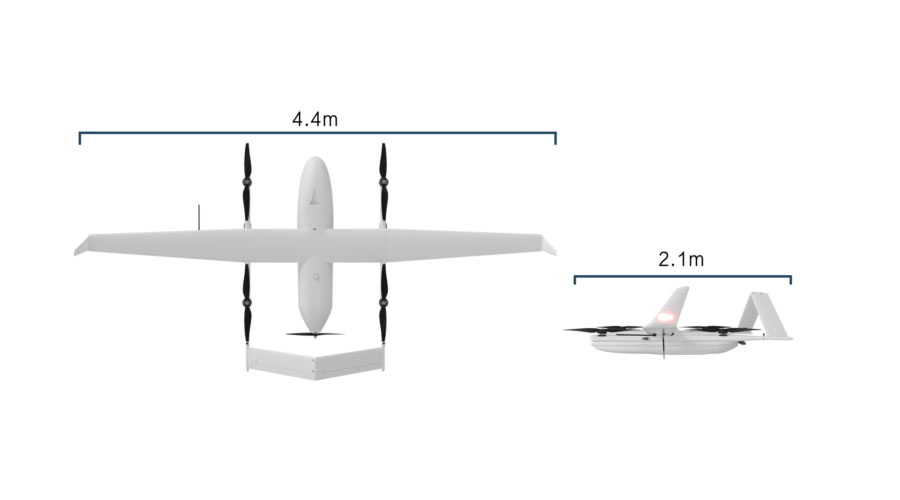

Technical Specifications
Hardware
Fuselage
2.1m
Wingspan
4.4m
MTOW
31kg
Modular Design
Yes
Multi Purpose UAV
Yes
Playload
4kg
Flight Performance
Endurance
330min
Cruising Speed
80km/h
Wind Resistance
13.9-17.1m/s
* All performance data in the foregoing pages are theoretical values obtained by JOUAV® internal laboratories through tests carried out under particular conditions. For more information on the specific testing conditions, refer to the aforementioned product details. Actual performance may vary owing to differences in individual product configuration, software versions, application conditions, and environmental factors. All data is subject to actual usage.
Industry Applications
JOUAV drones widely used in mapping and geographic information, inspection, security monitoring, emergency and other fields of a variety of application scenarios.
Emergency Response
Application in the area with dense personnel and complex scenes security surveillance, CW VTOL UAV solution realize big area and long-term high-altitude real time surveillance.
Aerial Mapping & Surveying
Are you looking to add drones to your surveying services? Here is everything that you need to know about drone surveying.
Security & Surveillance
In this article, you will learn the benefits you can see with security drones, how to use drones for security surveillance, and more.
