The JOUAV Multirotor Hangar System combines the PH-10H drone, intelligent docking station, and JoCloud platform to deliver fully autonomous 24/7 operations. With automatic battery swapping, multi-payload capacity, and all-weather reliability, it enables fast deployment and seamless missions—from security and inspection to emergency response.

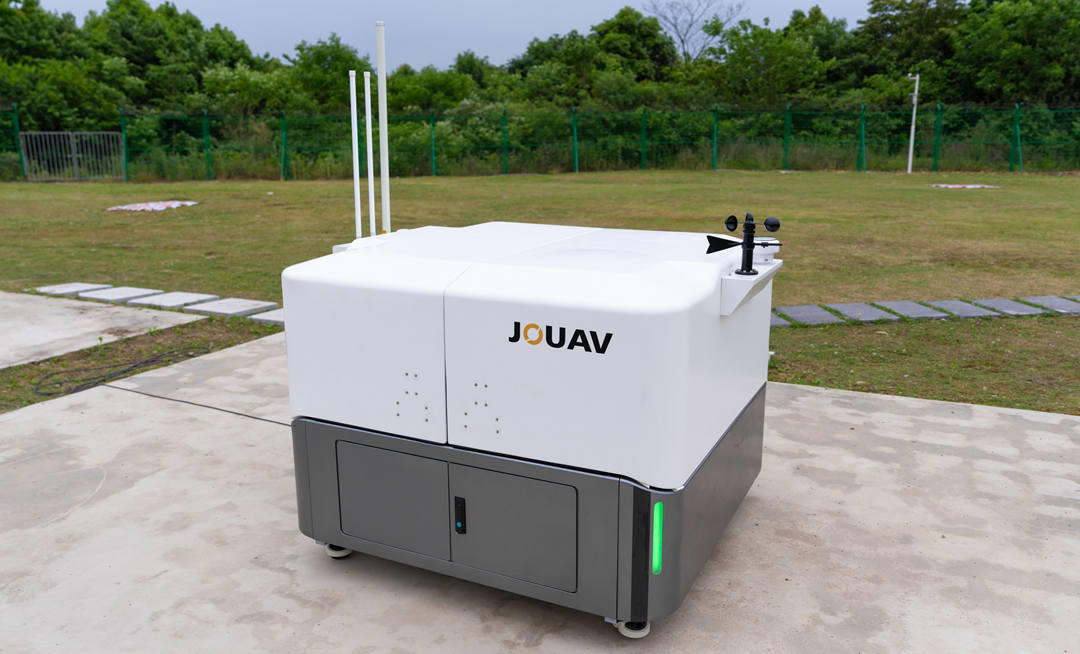

The JOS-P200 Smart Hangar is the core of your autonomous drone ecosystem, engineered for non-stop operations with minimal human intervention. It ensures your PH-10H drone is always mission-ready, in any environment.
Autonomous Battery Swapping
Powered by an environmental control system, intelligent battery swapping, and smart battery management technology, the hangar enables seamless drone battery replacement and recharging for all-weather, non-stop drone missions.
2-Hour UPS Backup Power
Integrated UPS backup power supports up to 2 hours of operation. The system automatically switches to backup power during external power outages, ensuring mission continuity and equipment safety for critical operations.
High-Speed & Stable Communication

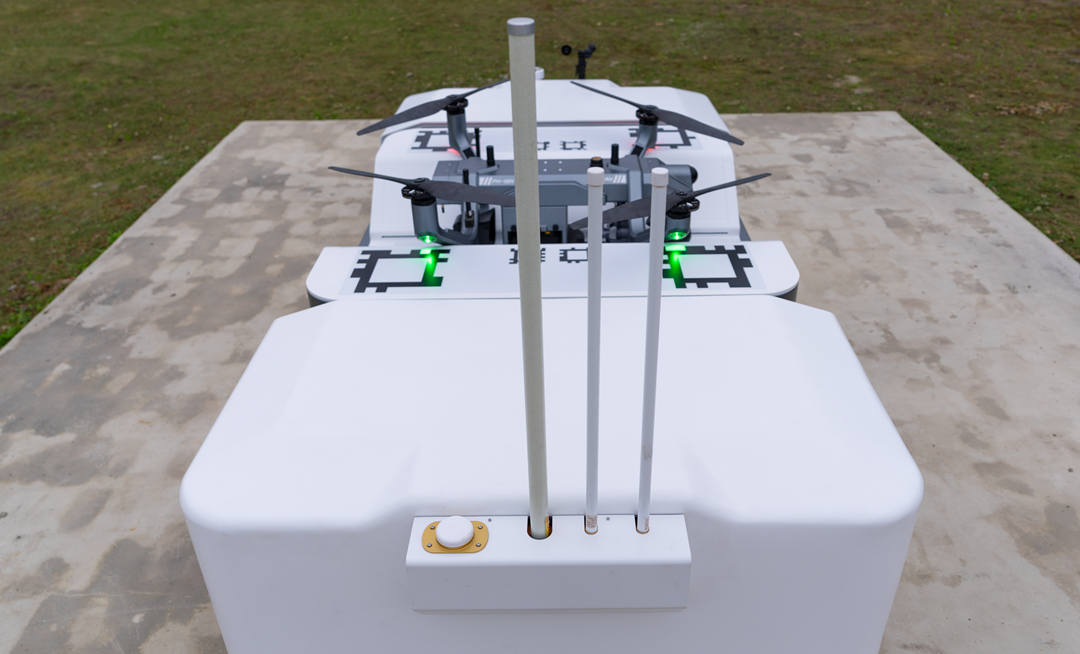

Featuring 1000M Ethernet and fiber optic interfaces with 4G/5G connectivity, the JOS-P200 ensures high-speed, stable data links. This enables seamless communication between the drone, hangar, and JoCloud platform.
Rapid Deployment, Flexible Adaptation
Supports both fixed-site long-term deployment and vehicle-mounted mobile deployment, meeting the needs of various scenarios from campus security to emergency response. From receiving a command to the first drone launch takes less than 1 minute, eliminating delays from decision to action.
All-Weather Reliability
Built-in intelligent climate control maintains a constant temperature and humidity inside the hangar, effortlessly withstanding extreme conditions from -30°C deep freeze to +50°C heat. The robust housing is engineered to be fully rainproof, wind resistant, and salt spray resistant (anti-corrosion), providing ultimate protection for the drone in harsh environments.
Rugged and Low-Maintenance Design
Lean industrial design keeps weight under 249 kg while delivering impressive durability. Requires routine maintenance only once every 6 months, significantly reducing operational costs and manpower requirements, allowing you to focus on the mission itself.

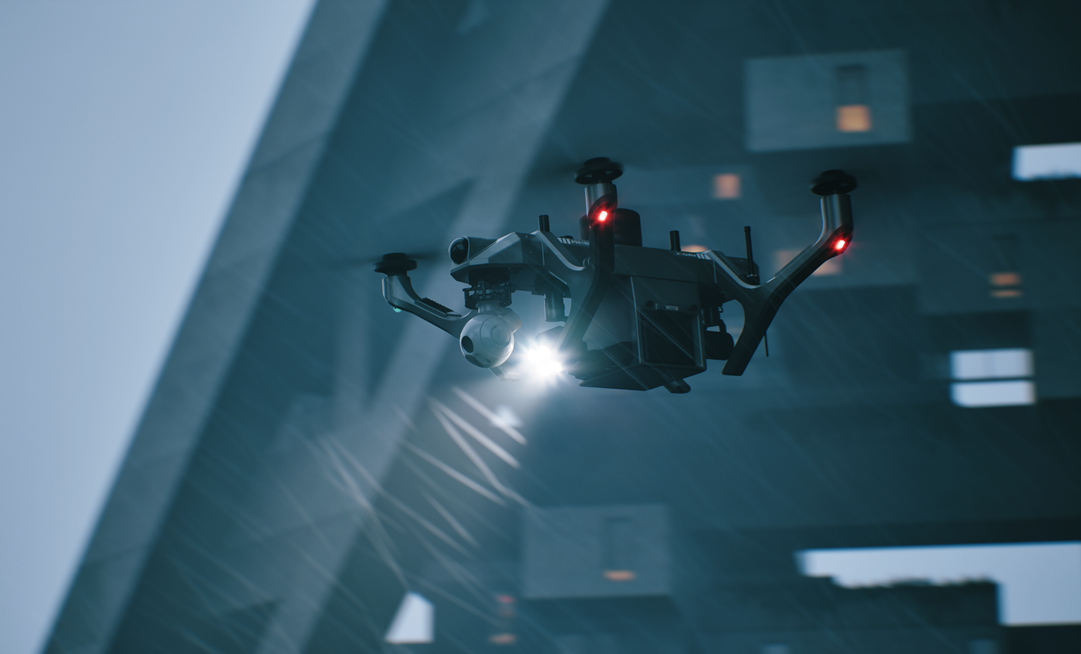

Engineered for endurance and versatility, the PH-10H is a high-performance unmanned platform built to carry multiple payloads and operate in the most challenging conditions.
Multi-Payload Flexibility
With a maximum payload capacity of 6 kg, the PH-10H can carry up to 4 payloads simultaneously—including cameras, loudspeakers, searchlights, parachutes, or sensors—enabling tailored solutions for security, inspection, and public safety missions.
Up to 60min Extended Flight Time
15km Long-Range Communication
Equipped with a robust data link, the PH-10H can operate reliably within a 15 km communication range, ensuring operators maintain full control and real-time situational awareness across large areas such as cities, industrial zones, or border regions.
Robust Environmental Adaptability
360° Obstacle Avoidance
The PH-10H uses a multi-sensor fusion system for all-round safety. A surround-view LiDAR detects horizontal obstacles, while rear and downward millimeter-wave radars enhance rear and ground awareness. With dual-lens vision positioning, it achieves precise landings even in GPS-challenged areas, ensuring safe and reliable autonomous operations.
The JOUAV drone-in-a-box solution offers a versatile platform for diverse applications. To further enhance its functionality, you can equip your CW-15V drone with a variety of optional payloads.
JoCloud empowers you to seamlessly control your JOUAV VTOL Hangar missions. Plan & manage flights, access real-time data anywhere, and leverage AI for insights - all in one platform.
Craft intricate flight paths with ease, whether you need linear surveys, detailed area coverage, or high-resolution orthographic maps. Define waypoints, set specific areas of interest, and schedule tasks with precision. JoCloud also allows you to orchestrate synchronized missions for multiple drones, maximizing efficiency.
Monitor live video feeds, view high-resolution orthomosaics for detailed inspections, and analyze LiDAR point clouds for 3D terrain mapping – all from a single platform. JoCloud grants you secure access to this critical data from anywhere, be it your command center, a field vehicle, or even a mobile device.
JoCloud utilizes advanced AI to prioritize potential anomalies within the live video stream, highlighting areas of concern and enabling rapid decision-making. Additionally, video marking and augmented reality overlays let you annotate critical information directly onto the live feed, facilitating clear communication and collaboration with your team.
JoCloud automates the heavy lifting of data management. It automatically processes all collected data, meticulously records flight details, and compiles comprehensive reports. These reports are enriched with AI-generated insights, providing a clear picture of your mission's success and potential areas for further exploration.
This is a revolutionary solution for a wide range of industries. Its automated operation, long-range capabilities, and diverse payload options make it ideal for:
1.7x1.5x2.2m [5.6x4.9x7.2f](closed) 3.2x 1.5 x 1.8m [10.5 x 4.9 x 5.9ft](opened)
-30℃~+50℃ With built-in climate control system
AC 220V 50Hz
Battery swapping
＜1.5min
Once every 6 months
1000M network, optical fiber

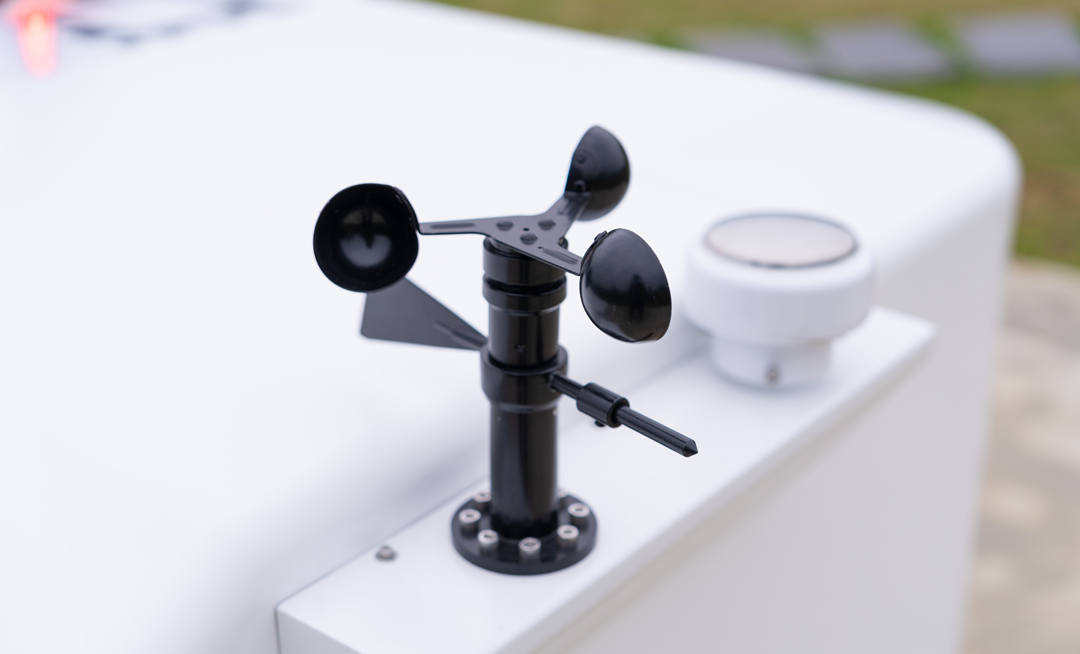

Real-time monitoring of air pressure, temperature & humidity, wind speed, rainfall, and live video feed; Automatic switchover to backup battery power during outages
＜249kg (with 2 hours UPS power)
5000m [ 16404.2ft ]
48min (with standard three-payload configuration: gimbal camera, loadspeaker, searchlight ) 43min (with four-payload configuration: gimbal camera, loadspeaker, searchlight, parachute) 35–60min (depending on payload configuration)
6kg, supports multi-payload combinations
16m/s [ 31.1kts ]
15km [ 9.32mi ] (extendable with cellular network module)
-30℃～ +50℃
5000m [ 16404.2ft ]
5000m [ 16404.2ft ]
Operates normally in winds up to Level 6; Safe emergency landing in Level 8 winds; Moderate rain
