Overview
The CA50XR series is available in five models, including half-frame and full-frame five-lens oblique cameras. Suitable for fixed-wing and multi-rotor UAVs, the CA50XR series offers high image resolution, five POS information outputs, and good performance at low or high temperatures.
CA502R
CA502RC

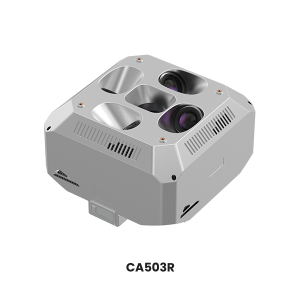

CA503

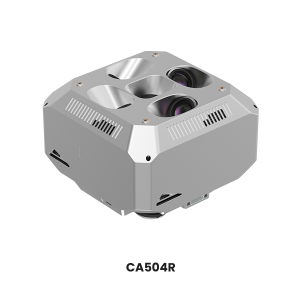

CA504R

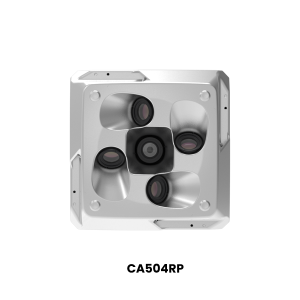

CA504RP
Benefits and Features
CA50XR series are cost-effective, full-frame, high-resolution oblique cameras specially designed for JOUAV's vertical take-off and landing fixed-wing UAVs.  With a total pixel count of up to 300 million, a long focal length lens, and full-frame and half-frame available, CA500R series are not only applicable to traditional projects but also used for data collection of  3D smart city projects.
product-detail
High Resolution
CA504R has a single camera resolution of up to 61 megapixels and a total resolution of up to 305 million pixels.
product-detail
High Accuracy
Even with no GCP, CA504R can achieve 1.5cm GSD and generate high-precision 3D models within 10cm.
product-detail
High Synchronization
It simultaneous outputs of five POS information, minimum exposure interval as low as 0.5s.
product-detail
Full-frame Back-illuminated Sensor
CA503R adopts a full-frame back-illuminated sensor with high sensitivity and low noise.
product-detail
Modular Design
Independent modular design of camera body, control unit, data copy unit make the camera easy to replace and repair.
product-detail
High-speed SD Card
The camera store data in a high-speed SD card that supports hot-swapping, realizing the preparation of the next sortie within 2 minutes.
product-detail
Temperature Control
Installed with heat dissipation module and 7-way temperature sensor, the camera can be operated at temperatures from -20°C to 65°C.
product-detail
Expandable IMU Module
It can record and output GPS coordinates and attitude angle at the moment of exposure to provide the best 3D mapping solution for you.
Data Results
By collecting data of the real scene, CA50XR series oblique cameras can not only truly show the detailed texture information of the ground with high precision but also generate a variety of results such as 3D Model, DSM, and DLG through advanced positioning and modeling technologies.
Compatible Drones
Light and portable, CA50XR series oblique cameras adopt modular design,  which can be compatible with most of JOUAV aerial survey fixed-wing UAVs.
CW-15
Multi-purpose and battery-operated intelligent VTOL drone
CW-25
Long Endurance Hybrid VTOL drone
CW-25E
Long Endurance Electric Fixed-wing VTOL Drone
Industry Applications
CA50XR series oblique cameras are widely used in basic surveying and mapping, real estate photography, heritage protection, smart city construction, disaster assessment, old city renovation, and other businesses.
Environment
The UAV remote sensing system has the advantages of low cost, high safety, high maneuverability, high precision, and diversified payloads, which makes its application in the field of environmental protection unique advantages.
Smart City
Digital Earth and Smart Earth put forward the slogan for efficient application of resources and environment. The construction of smart cities require drone remote sensing technology to obtain surface data in a short period of time.
Aerial Mapping & Surveying
Are you looking to add drones to your surveying services? Here is everything that you need to know about drone surveying.
Technical Specification
CA502RC
QTY of lens
5
Effective pixels
Total pixels: 130MP
Resolution
6240×4168
Focal length
Vertical 25mm/oblique 35mm
Sensor size
23.5×15.6mm (half frame)
Exposure interval
0.5s
Exposure method
External on-board POS synchronous exposure, CAN bus
Storage
640G×2
Operating temperature
-20℃ - 65℃
Working humidity
≤93%
Size
104.5mm×104.5mm×87mm
Weight
≤620g
CA502R
QTY of lens
5
Effective pixels
Total pixels: 155MP
Resolution
6876×4584
Focal length
Vertical 30mm/oblique 45mm
Sensor size
23.5×15.6mm (half frame)
Exposure interval
0.5s
Exposure method
External on-board POS synchronous exposure, CAN bus
Storage
640G×2
Operating temperature
-20℃ - 65℃
Working humidity
≤93%
Size
104.5mm×104.5mm×89mm
Weight
≤640g
CA503R
QTY of lens
5
Effective pixels
Total pixels: 225MP
Resolution
8192×5468
Focal length
Vertical 40mm/oblique 56mm
Sensor size
36×24mm (full frame)
Exposure interval
0.75s
Exposure method
External on-board POS synchronous exposure, CAN bus
Storage
640G×2
Operating temperature
-20℃ - 65℃
Working humidity
≤93% RH
Size
130mm×130mm×100mm
Weight
≤902g
CA504R
QTY of lens
5
Effective pixels
Total pixels: 305MP
Resolution
9504×6336
Focal length
Verticla 40mm/Oblique 56mm
Sensor size
35.7mm×23.8mm (full frame)
Exposure interval
0.8s
Exposure method
External on-board POS synchronous exposure, CAN bus
Storage
640G×2
Operating temperature
-20℃ - 50℃
Working humidity
≤93% RH
Size
155mm×155mm×105mm
Weight
≤1050g
CA504RP
QTY of lens
5
Effective pixels
Total pixels: 305MP
Resolution
9552×6368
Focal length
Verticla 40mm/Oblique 56mm
Sensor size
35.9mm×23.9mm (full frame)
Exposure interval
1s
Exposure method
External on-board POS synchronous exposure, CAN bus
Storage
1280G×2
Operating temperature
-20℃ - 65℃
Working humidity
≤95% RH
Size
130mm×130mm×100mm
Weight
≤840g
