The vast expanse of our oceans holds countless secrets, with hidden mountains, valleys, and plains veiled beneath the waves. To navigate these submerged landscapes and unlock their potential, we rely on a specialized science – hydrographic surveying.

It's like creating a detailed map of the underwater world, revealing its depths, contours, and potential hazards. This knowledge is essential for ensuring safe navigation, planning crucial infrastructure projects, and even managing valuable marine resources.

This article will equip you with a deep understanding of hydrographic surveying. We'll delve into the various techniques employed, explore the methods and procedures involved, and unveil the diverse applications across different sectors.

What is Hydrographic Surveying?

What is Hydrographic Surveying?

In essence, hydrographic surveys are like underwater X-rays, measuring and mapping the physical characteristics of oceans, seas, rivers, and lakes. This detailed information provides a wealth of knowledge about the underwater terrain, including:

  • Water depth: This is the primary focus, crucial for safe navigation and understanding the underwater landscape.
  • Seafloor Composition: Knowing the type of seabed (sand, rock, etc.) is essential for planning infrastructure projects and understanding marine ecosystems.
  • Submerged hazards: Identifying shipwrecks, underwater ridges, or other obstacles is vital for safe navigation.
  • Water properties: Some surveys may measure factors like salinity, currents, and tides, depending on the project's specific needs.

This comprehensive data is typically presented in nautical charts – the GPS of the sea. However, the applications of hydrographic surveys extend far beyond navigation. The information is crucial for environmental research, civil engineering projects, managing marine resources like fisheries, and even understanding delicate marine ecosystems.

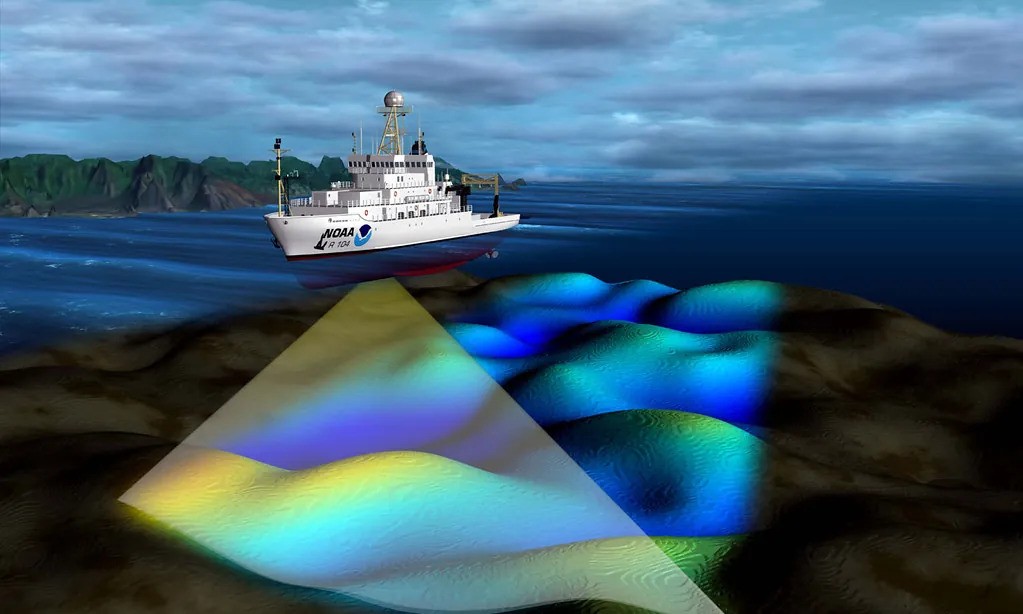

Hydrographic survey

Image credit: NOAA's National Ocean Service

Why are Hydrographic Surveys Important?

Why are Hydrographic Surveys Important?

Without a detailed map of the underwater terrain, construction teams and exploration crews would be navigating blind. Hydrographic surveys identify potential hazards like submerged rocks or uneven seabed topography, preventing costly equipment damage and, more importantly, safeguarding the lives of personnel involved.

By charting the underwater landscape, hydrographic surveys empower project leaders to meticulously plan routes. This translates to smoother sailing, avoiding detours and delays caused by unforeseen obstacles. This optimization significantly reduces project timelines and keeps costs in check.

Types of Hydrographic Survey

Types of Hydrographic Survey

Did you know there are various types of hydrographic surveys, each with a specific purpose? Let's explore some of the most common ones:

  1. General Hydrographic Surveys: These are the most common type of hydrographic survey. They are used to collect data on water depth, mean sea level, coastlines, and other features of the seabed. This data is used to create nautical charts, which are essential for safe navigation.
  2. Coastal Surveys: These surveys are conducted in coastal areas to collect data on the shoreline, water depth, and seabed features. This data is used for a variety of purposes, including coastal erosion studies, port development, and habitat mapping.
  3. Harbor Surveys: Harbor surveys are conducted in harbors and ports to collect data on water depth, the seabed, and any hazards that may be present. This data is used to ensure the safe navigation of vessels and to plan for dredging and other maintenance activities.
  4. Passage Surveys: Passage surveys are conducted in shipping lanes and other areas where there is a high volume of maritime traffic. These surveys are used to collect data on water depth, hazards, and other features that may affect navigation.
  5. Wreckage Surveys: Wreckage surveys are conducted to locate and map shipwrecks. This data is used for a variety of purposes, including salvage operations, hazard identification, and archaeological studies.
Equipment and Technology Used in a Hydrographic Survey

Equipment and Techniques Used in a Hydrographic Survey

Gone are the days of manual labor and guesswork. Modern hydrographic surveys rely on a sophisticated arsenal of equipment, employing sonar, lasers, and other cutting-edge technologies to ensure accuracy and efficiency.

Marking Equipment

Every hydrographic survey starts with proper marking. Surveyors use high-visibility, low-tack marking tape to designate survey points, GPS measurement endpoints, and underwater hazards like rocks, shipwrecks, and reefs. This brightly colored tape comes in various hues, each signifying a specific purpose:

  • Orange: The universal color for marking underwater dangers.
  • Yellow: Often used to designate GPS measurement endpoints.
  • Red & White: Offer flexibility for marking various features.

GPS and Optical Devices

Global Positioning Systems (GPS) are a cornerstone of modern hydrography. These devices provide surveyors with real-time, accurate coordinates for each survey point, eliminating the need for physical markers. Many advanced GPS units boast built-in inclinometers to determine elevation at each point.

For situations where GPS isn't an option, traditional surveying instruments like theodolites, alidades, and levels offer valuable alternatives, albeit with varying degrees of accuracy and portability. Theodolites reign supreme in terms of precision, while alidades provide a more portable option with a slight compromise on accuracy. Levels, while less precise, still hold a place in specific hydrographic surveys.

Sonar

Sonar technology revolutionized hydrographic surveys by using sound waves to measure water depth. These marvels of underwater exploration come in various forms, each catering to specific needs:

  • Side-scan sonar: Ideal for surveying large, near-shore areas, creating a detailed image of the seabed, and revealing submerged obstructions.
  • Echo sounders: Perfectly suited for measuring depths in shallow waters.
  • Multi-beam sonar: The undisputed champion of accuracy, multi-beam sonar transmits sound pulses in all directions, offering a comprehensive picture of the underwater terrain and pinpointing potential hazards.

Sonar technology

Video Equipment

Video cameras play a crucial role in hydrographic surveys. They capture invaluable footage of underwater features, aiding surveyors in monitoring crew members in low-visibility conditions. Additionally, video documentation allows for post-survey review and adjustments.

Commonly used video equipment includes video cameras, digital still cameras, and GoPros. When selecting a camera, water resistance and the ability to withstand movement and vibrations are key considerations.

Electronic Navigation Tools

Electronic navigation tools are a surveyor's trusted companion. These versatile devices provide essential information like current and tidal data, weather forecasts, and marine traffic alerts. Some models boast mapping software for creating surveys and overlaying existing charts.

Additionally, many integrate GPS technology for seamless navigation and some even feature sonar functionality, referred to as Electronic Navigation with Sonar (ENSON). ENSON systems are invaluable for hazard identification, charting survey progress, and conducting surveys in low-visibility environments.

Depth Measurement Tools

Beyond sonars, hydrographic surveys employ specialized equipment for precise depth measurement. Rotating beams determine depths directly below a stationary position, while strainers (weighted lines with buckets) estimate average depths over a designated area. While highly accurate, these methods require meticulous execution and choosing the right tool for the job.

Bottom Profiling Equipment

For shallow water exploration and hazard identification, bottom profiling equipment steps up. This category encompasses side-scan sonar, multi-beam sonar, echo sounders, video cameras, rotating beams, and strainers.

Similar to multi-beam sonar, bottom profiling tools transmit sound pulses and interpret echoes to create a detailed picture of the seabed, which is particularly valuable in shallow areas or locations with limited visibility.

What Deployment Platforms Are Used in Hydrographic Survey?

What Deployment Platforms Are Used in Hydrographic Survey?

Modern hydrographic surveys leverage a range of platforms to collect data, each with its advantages and considerations:

  • Manned vessels: Traditional survey ships offer a stable platform for a wide range of equipment.
  • USVs (unmanned surface vehicles): Cost-effective for large areas, USVs utilize acoustic technologies for underwater measurements.
  • UUVs (unmanned underwater vehicles): Ideal for depths beyond surface vessels, UUVs with acoustic equipment navigate autonomously and collect underwater data.
  • UAVs (unmanned aerial vehicles): For hydrographic surveys in shallow waters, LiDAR drones are proving to be a game-changer. These UAVs, carrying specialized LiDAR payloads, efficiently capture high-resolution bathymetric data (water depth measurements).
How is a Hydrographic Survey Being Done?

How is a Hydrographic Survey Being Done?

Hydrographic surveying is a meticulous process that involves several stages, each crucial in ensuring the accuracy and reliability of the data collected.

Planning and Preparation

The first step in conducting a hydrographic survey involves meticulous planning and preparation. This stage includes defining the survey's objectives, scope, and the area to be surveyed. It's also essential to identify potential challenges, such as varying water depths, currents, and obstructions.

Depending on the survey's purpose, the team may need to consider tidal predictions, weather forecasts, and safety measures. The choice of equipment and technology to be used, such as sonar systems, GPS, and marking devices, is also determined at this stage.

Preparation of hydrographic survey

Data Collection

Once the survey plan is in place, the next step is data collection. Survey vessels equipped with sonar systems, GPS, and other necessary equipment navigate the predetermined routes, collecting data continuously. Sonar systems emit sound waves, which bounce back upon hitting the seafloor or any underwater object.

The time it takes for the sound wave to return is recorded, providing data on water depth and the presence of any underwater features. GPS systems track the vessel's exact location, ensuring that the depth data is accurately linked to the corresponding geographic coordinates.

Data Processing

After data collection, the raw data is processed and analyzed. This involves converting the sonar readings and GPS data into a format that can be interpreted and used to create a detailed map of the surveyed area.

Data processing includes correcting any anomalies or inaccuracies in the data, such as those caused by waves, tides, or equipment errors. The processed data provides a comprehensive and accurate representation of the underwater terrain, including water depths, seabed composition, and the location of any features or obstructions.

Charting and Reporting

The final stage of the hydrographic survey process is charting and reporting. The processed data is used to create detailed charts or maps of the surveyed area. These charts provide a visual representation of the underwater terrain and include crucial details such as water depths, seabed features, and potential hazards.

In addition to the charts, a comprehensive survey report is prepared, detailing the survey's findings, any challenges encountered, and conclusions drawn from the data.

Applications of Hydrographic Surveys

What are Hydrographic Surveys Used for?

Hydrographic surveys are the meticulous measurement of underwater landscapes, utilizing advanced technology to generate precise data with real-world consequences. Let's explore the impact of these surveys with specific examples:

Safeguarding Navigation

Bathymetric surveys, the cornerstone of hydrography, measure water depths to within centimeters. This data is used to create detailed nautical charts that guide ship captains.

Imagine a captain receiving a real-time update on their electronic navigation system, highlighting a previously unknown underwater pinnacle just meters from their course.

Hydrographic surveys prevent such near misses, ensuring the safe passage of billions of dollars worth of cargo and countless passengers each year.

Navigation

Civil Engineering

Before embarking on massive infrastructure projects like harbor construction or dam building, engineers rely heavily on hydrographic surveys. These surveys provide a detailed picture of the underwater terrain, including water depth and the composition of the seabed.

This critical information allows engineers to design structures with the necessary support to withstand the forces of nature and ensure the longevity of these vital projects.

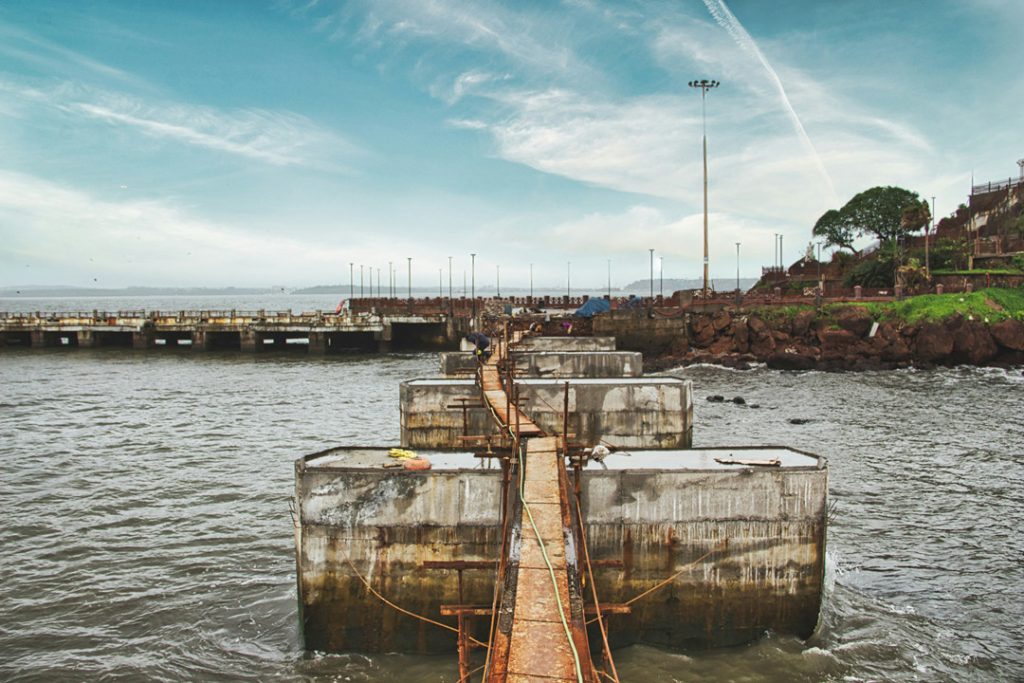

Harbor construction

Land Reclamation Projects

Hydrographic surveys play a pivotal role in land reclamation projects. By meticulously mapping the seabed topography and composition, engineers can identify suitable locations for land expansion and assess the feasibility of such endeavors.

This precise data empowers them to make informed decisions that shape coastlines for future development.

Flood Control System Design

Understanding the underwater landscape is essential for designing effective flood control systems. Hydrographic surveys reveal potential flooding zones with centimeter-level accuracy.

Imagine city planners being able to pinpoint exactly where levees need to be reinforced or where natural drainage channels can be restored. This precise data allows for the creation of targeted flood control measures that protect lives and property.

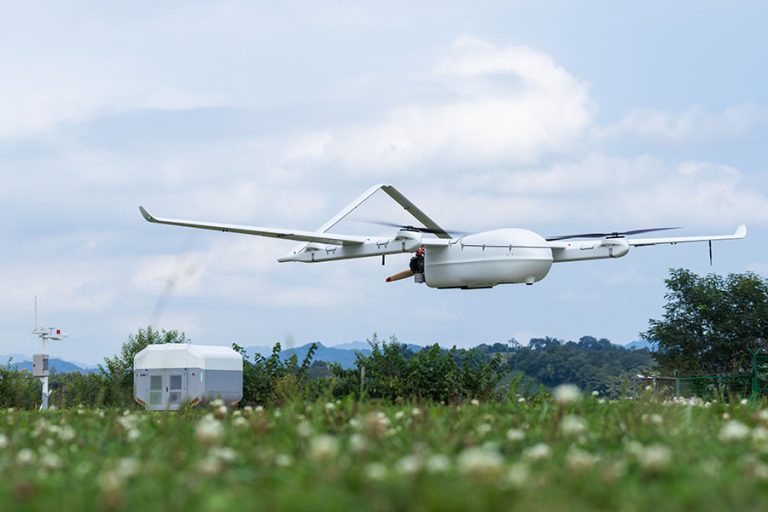

Flood picture of emergency drone

Resource Management

Hydrographic surveys are not limited to the physical landscape. By mapping alluvial and silt deposits near water bodies, they aid in identifying fertile land with high agricultural potential.

Additionally, studying river discharge patterns using hydrographic data allows for a deeper understanding of erosion risks.

Armed with this knowledge, land management strategies can be implemented to promote sustainable agricultural practices.

Offshore Industries

The offshore oil and gas industry heavily relies on hydrographic surveys. These surveys are used to remotely inspect underwater pipelines and oil rigs, identifying potential damage or wear and tear with pinpoint accuracy.

This allows for preventative maintenance, minimizing the risk of costly accidents and environmental disasters.

Additionally, hydrographic surveys ensure the safe and precise laying of new pipelines on the seabed.

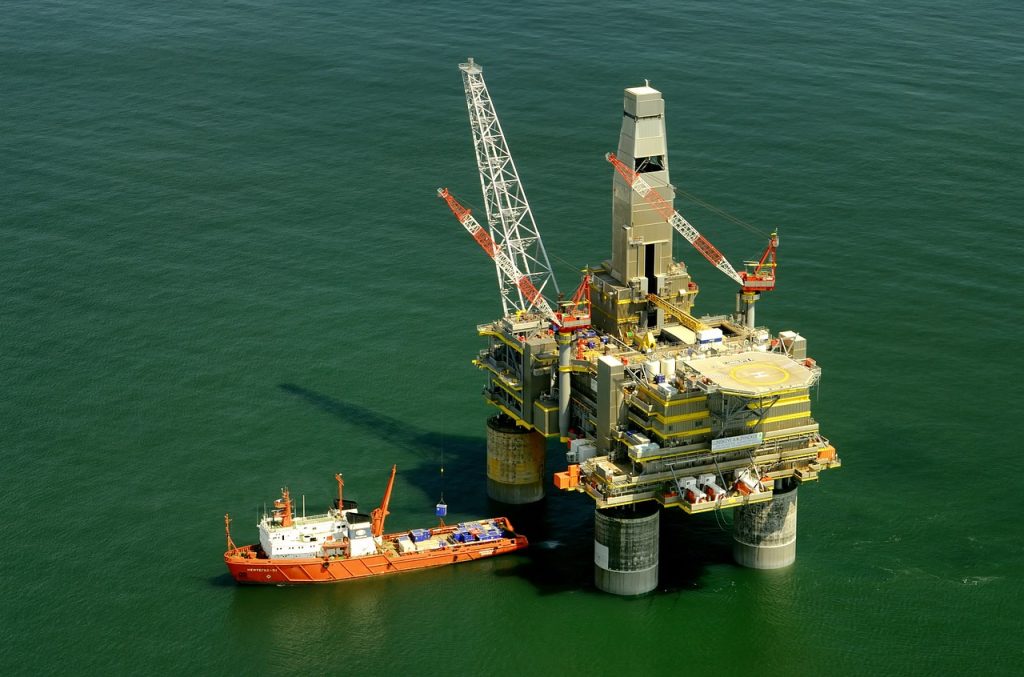

Offshore oil rig

What is the Difference Between a Hydrographic and Bathymetric Survey?

What is the Difference Between a Hydrographic and Bathymetric Survey?

While the terms "bathymetry" and "hydrography" are sometimes used interchangeably, a crucial distinction exists between these underwater mapping techniques.

Bathymetry focuses on a single, crucial aspect: water depth across a specific area. Think of it as meticulously mapping the underwater landscape, revealing the intricate valleys, ridges, and slopes that form the seabed.

Hydrography goes beyond depth measurements, offering a comprehensive view of the underwater environment like a powerful telescope. It incorporates bathymetric data (of course!), but dives deeper by gathering additional information:

  • Salinity (Salt Content)
  • Water Temperature
  • Currents
  • Seabed Composition
  • Hazards

To conclude, bathymetry tells you how deep the water is, while hydrography reveals everything you need to know about the underwater environment, including its depth.

FAQ

FAQ

What are the Limitations of Hydrographic Surveys?

Hydrographic surveys, while crucial for navigating and understanding the underwater world, face limitations that impact the data they reveal.

Nature itself can be a foe – rough seas hinder operations and murky water clouds sonar readings.

Technology has its limits too - sonar range struggles in both shallow and deep waters, and data processing requires meticulous care to avoid inaccuracies.

The vastness of the oceans itself presents a challenge, as hydrographic surveys can only cover specific areas at a time.

Who Conducts Hydrographic Surveys?

Hydrographic surveys are conducted by a two-pronged team:

  • Government Agencies: National hydrographic offices (like NOAA in the US) and other entities like coast guards ensure safe navigation through nautical charts.
  • Private Sector: Specialized survey companies cater to clients like engineering firms, resource exploration companies, and even research institutions.
